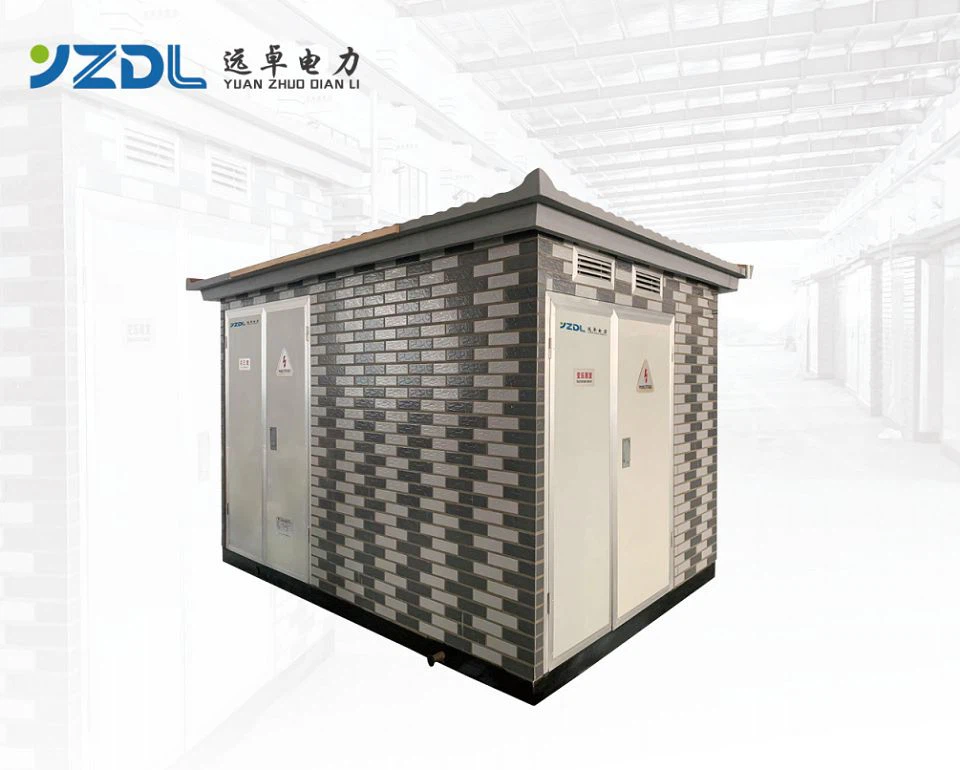

HV Prefabricated Substation
Integrated High-Voltage Solution: Save Space and Construction Costs
The HV Prefabricated Substation is an integrated prefabricated device from Yuanzhuo Electrical Equipment. We designed it for high-voltage distribution applications. We built it with our mature technology in high-voltage switchgear and transformers. It provides efficient, safe, and convenient distribution solutions. It follows the GB/T17467 standard. It integrates high-voltage switchgear, step-down transformers, high-voltage metering devices, and protection components into a sealed metal enclosure. This eliminates the need for a separate high-voltage distribution room.
|
Parameter |
Specification |
|
Integration |
High-voltage switchgear, step-down transformer, metering, protection |
|
Protection Level |
Up to IP54 |
|
Operation |
Manual or motor-operated |
|
Certification |
ISO9001, CQC, CCC |
|
Application |
Distribution grids, small power plants, factories, mines |
Factory Prefabricated: Quick Installation on Site
This HV Prefabricated Substation is fully built and tested at the factory. The structure is compact and small. On-site work is simple wiring. This shortens project timelines significantly. The enclosure uses quality sheet metal with precision processing and professional coating. It has excellent corrosion, dust, and water resistance. The protection level can reach IP54. It suits indoor and outdoor installation in various harsh conditions. Dynamic and thermal stability are excellent. Breaking capacity is strong.
Safe and Reliable: Five-Prevention Interlock for Safety
The HV Prefabricated Substation has a five-prevention interlock. This prevents wrong operations and ensures distribution safety. It supports manual and motor-operated modes. It has simple monitoring and operation interfaces for daily inspections. You can customize voltage, capacity, and other parameters based on your needs. We follow ISO9001 and have CQC and CCC certifications. Each unit goes through strict high-voltage and performance tests. It is widely used in distribution grids, small power plants, large factories, mines, commercial buildings, rail transit, and airports.
Frequently Asked Questions (FAQ)
Q: Do I need to build a separate room for this substation?
A: No, it is integrated into a sealed enclosure. You can install it directly on site.
Q: What is the five-prevention interlock?
A: It is a safety system that prevents wrong operations, ensuring safety for people and equipment.
Q: Can this be used outdoors?
A: Yes, it has a protection level up to IP54 for outdoor use in various conditions.
