Dry Type Pad Mounted Transformer
Safe and Reliable: No Fire Risk, No Oil Leakage

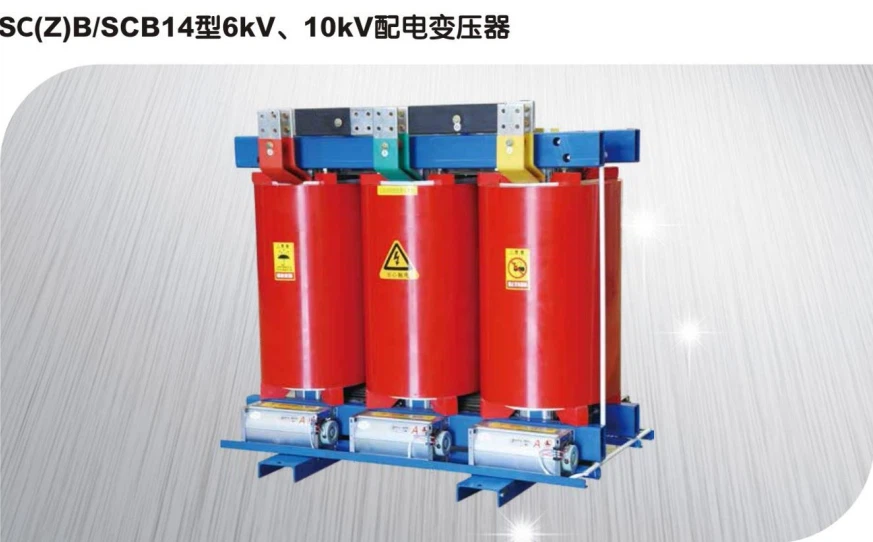

The Dry Type Pad Mounted Transformer is a mature product from Yuanzhuo Electrical Equipment. Its core feature is safety. It does not use any insulating oil. We use epoxy resin to cast the coils. This design eliminates fire risk. It also completely avoids oil leakage issues. That is why it is very suitable for indoor installation. Many shopping malls, hospitals, subway stations, and factory distribution rooms choose this Dry Type Pad Mounted Transformer. We have our own sheet metal processing workshop. This means we design and produce the transformer enclosure completely in-house.
|
Parameter |
Specification |
|
Insulation |
Epoxy resin cast coil, no oil |
|
Enclosure |
Customizable from IP20 and higher |
|
Cooling |
Intelligent temperature control system |
|
Testing |
Insulation, induction voltage, partial discharge tests |
|
Standard |
ISO9001 quality system |
Built to Last: Strong Enclosure and Intelligent Cooling
We can provide enclosures with IP20 or higher protection levels based on your installation environment. This effectively blocks dust and foreign objects. The enclosure surface has professional coating with strong corrosion resistance. These details ensure stable operation in complex environments. To keep the transformer at the optimal temperature, we equip it with an intelligent temperature control system. The system monitors winding temperature in real time. When temperature gets too high, cooling fans start automatically. If temperature is abnormal, the system gives an alarm. This greatly improves equipment safety and service life.
Complete In-House Production: Quality at Every Step
Our factory has a complete production line. From silicon steel sheet cutting to coil winding to final assembly and testing, every step is done in our own factory. We strictly follow the ISO9001 quality system. Each Dry Type Pad Mounted Transformer must pass strict factory tests before delivery. These include insulation resistance tests, induction voltage tests, and partial discharge tests. We provide complete test reports. Our goal is to ensure every unit you receive performs reliably. Our technical team provides full support from selection to installation.
Frequently Asked Questions (FAQ)
Q: Why is this transformer safe for indoor use?
A: It uses epoxy resin cast coils with no insulating oil. There is no fire risk or oil leakage.
Q: How does the temperature control system work?
A: It monitors winding temperature in real time. Fans start automatically when temperature is high, and alarms trigger if abnormal.
Q: Does your company perform factory testing?
A: Yes, each unit passes strict tests including insulation, induction voltage, and partial discharge tests. We provide test reports.
